MAIN OPERATING FEATURES

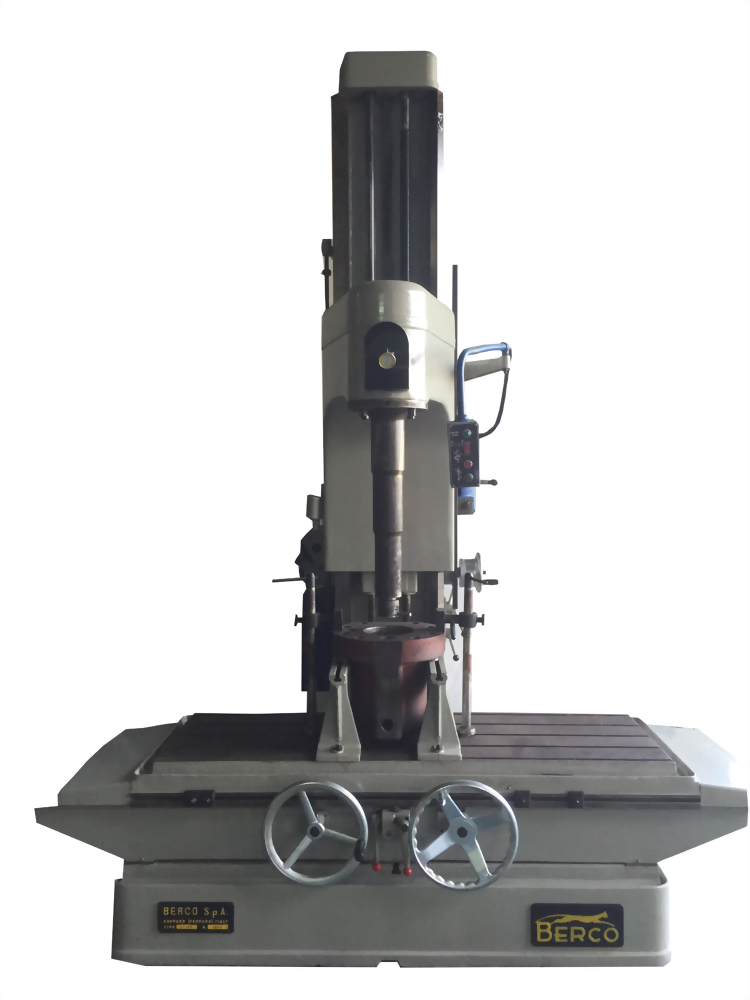

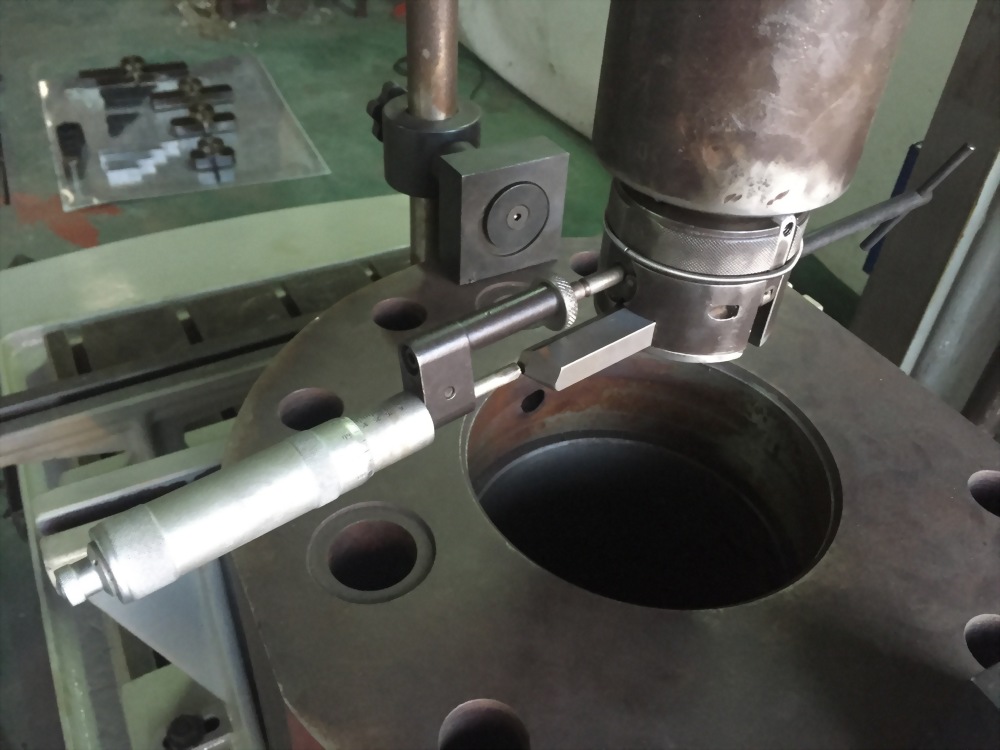

AC 1400 S
Boring range mm 80 - 500
3.15" - 19 11/16"
Max boring depth mm 1000
40"
Max spindle head travel mm 1340
52 3/4"
Distance between spindle C/L and slide mm 400
15 3/4"
Distance between spindle C/L and mm 455
column slideways 17 7/8"
Spindle rotation speeds (16) r.p.m. 20 - 233
Spindle feed speeds (3) mm/rev. 0.1 0.18 0.3
.00394" .00709" .01181"
Useful table surface mm 601 X 1780
24 5/8" X 70"
Max table traverse mm 1500
60"
Max table cross traverse mm 140
6 1/2"
Motor (Drive) HP 3--2
Motor (Tool grinder) HP 0.3
Weight, unpacked Kg 5250
lbs 11565
Weight, ocean packed Kg 6050
lbs 13328
Shipping dimensions m 34,5 X 2,00 X 2,29
2,58 X 0,95 X0,60
135" X 79" X 91"
Used

102" X 37" X 25"


SPINDLES TOOLHEADS BORING TOOLS TOOL FOR DEAD END HOLES
Type Length Type Range Type Range No. Length
mm mm mm mm
MIC 152 500 19 11/16" TES 79 80÷150 3 3/16" - 5 15/16" UAC 63 80÷115 3 3/16" - 4 9/16" ES 169 33 1 5/16"
UAC 80 115÷150 4 9/16" - 5 5/16" 41 1 5/8"
MIC 228 516.5 20 5/16" TES 145 145÷225 5 3/4" - 8 7/8" UAC 121 145÷225 5 3/4" - 8 7/8" ES 218 121 4 49/64"
MIC 302 750 29 9/16" TES 220 225÷300 8 7/8" - 11 43/16" UAC 190 225÷300 8 7/8" - 11 13/16" ES 218 190 7 1/2"
MIC 400 1000 39 1/2" TES 295 295÷400 11 5/8" - 15 3/4" UAC 232 295÷400 11 5/8" - 15 3/4"
TES 395 395÷500 15 1/2" - 19 11/16" UAC 232 395÷500 15 1/2" - 19 11/16"
(Only for AC 1400 S)
ES 303 584.6 23" TES 145 145÷225 5 3/4" - 8 7/8" UAC 121 145÷225 5 3/4" - 8 7/8" ES 218 121 4 49/64"
