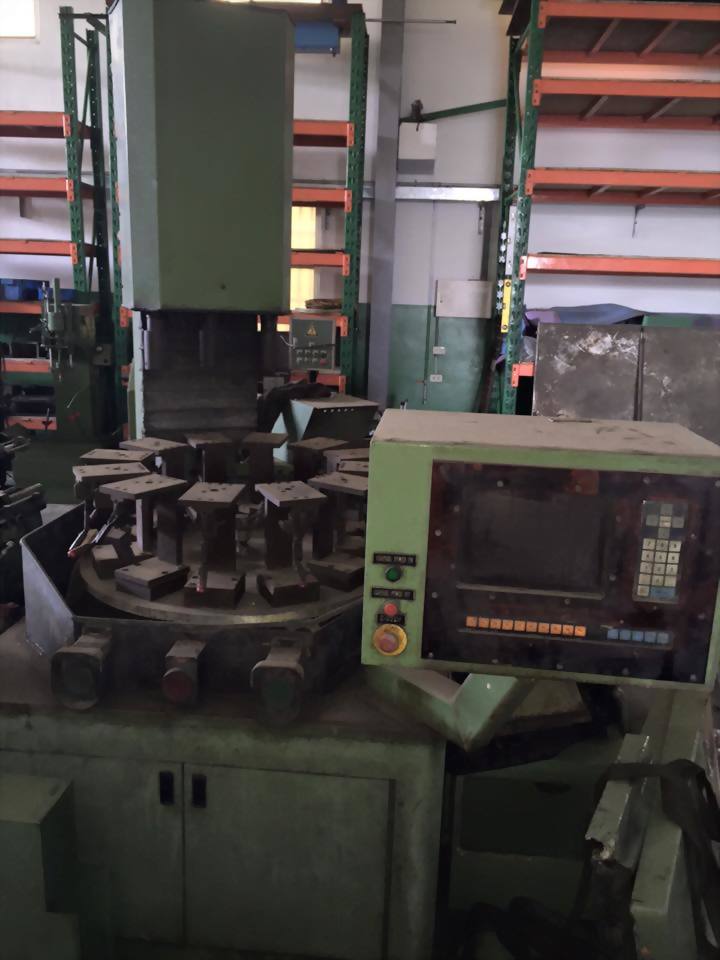

Sunnen Hone Model DMS3-40D

Controller GE/FANUC 90 Display System

provides real time production control and monitoring.

Diameter Range: .233 to 2.055 inch Maximum Part Size 6" X 6" X 6"


Spindle Drive:
   Column #1 - 5 HP Variable Speed Drive
   Column #2 - 3 HP Variable Speed Drive
Speed Drive 1 to 600 RPM
Speed Drive 1.5 HP Variable Speed
Stroke Speed 1 to 100 in/min
Index Table: 12 Station Air Operated Index (table can be set to index 1 to 12 Stations)
Tooling Plate 36"
Coolant Pump 10 Gallon
Filter System: Self Contained Replaceable
Coolant Capacity: 30 Gallons
